SMA Male Right-Angle 18GHz

Name: SMA Male RightAngle 18GHz
Brand: SIPU
Price: 1.4 USD

Wholesale SMA Male Right-Angle 18GHz from china suppliers

Brand Name : SIPU

Place of Origin : China

MOQ : 50

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Model Number : SMA-JWB2T

Certification : IOS9001 RoHS CE

Price : $1.4 - $2.4, Price negotiable for large quantities

Supply Ability : 500000 pcs/year

Delivery Time : 4-6 business days

Packaging Details : master carton

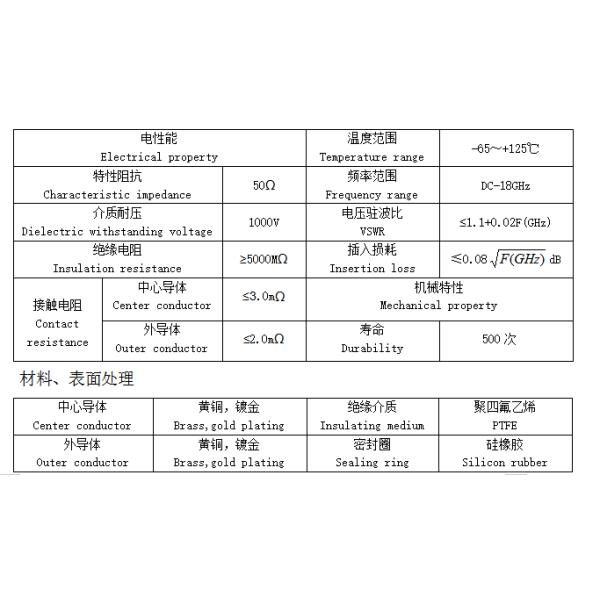

Characteristic impedance : 50Ω

Dielectric withstanding voltage : 1000V

Insulation resistance : ≥5000MΩ

Center conductor : ≤3.0mΩ

Outer conductor : ≤2.0mΩ

Temperature range : -65～+125℃

Frequency range : DC-6GHz

VSWR : ≤1.1+0.02F(GHz）

Insertion loss : ≤0.08dB

Durability : 500

Insulating medium : PTFE

Contact Now

SMA Male Right-Angle 18GHz for 2# Semi-Rigid/Semi-Flexible Cables (Model: SMA-JWB2T)

Product Overview

The SMA RF coaxial connector offers a compact design, wide frequency range, excellent mechanical and electrical performance, and high reliability, making it one of the most widely used RF connectors. It is commonly applied in microwave equipment and RF circuits for digital communication systems, providing reliable connections for cables or microstrip lines.

Applications:
Wireless communication, instrumentation, networking, telecommunications, and more.

Product Features:

Right-angle structure

Back cover with threaded connection

Compatible with 2# semi-flexible or semi-rigid RF coaxial cables

Strong interchangeability and high reliability

Superior electrical performance

Easy to solder and install

Product Appearance

SMA Male Right-Angle 18GHz
